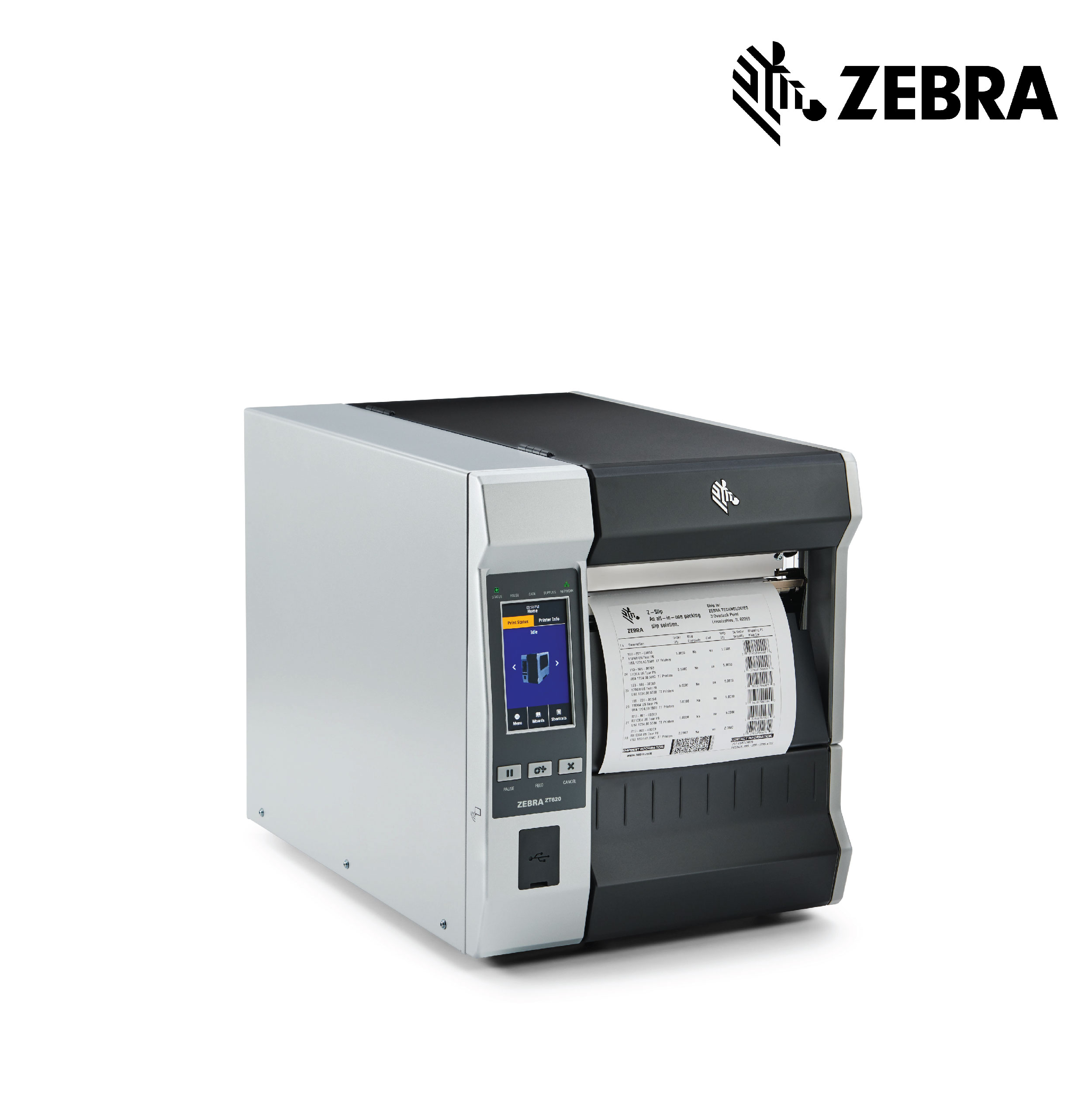

ZT600R Series

ZT600R Series INTELLIGENCE AND INDUSTRIAL BRAWN Combines industrial durability and user-friendly features with future-proof adaptability Print quality, reliability, maximum throughput

interested in the product

online channel

The Next Generation XI Series, Now With More Intelligence and Industrial Brawn



The ZT600 Series advances the legacy of the Xi Series printers to combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems, or controlling investment costs, the ZT600 Series industrial printers have you covered today – and for years to come.



Feature Comparison

Maximum Print Width

ZT610: 4.09"/104 mm

ZT620: 6.6"/168 mm

Maximum Print Speed

ZT610:

14 ips/356 mm per second at 203 dpi

12 ips/305 mm per second at 300 dpi

6 ips/152 mm per second at 600 dpi



ZT620:

12 ips/305 mm per second at 203 dpi

8 ips/200 mm per second at 300 dpi

Print Resolution (dpi)

203 dpi/8 dots per mm

300 dpi/12 dots per mm (optional)

600 dpi/24 dots per mm (optional for ZT610 only)



Standard Features

 - Print Methods: Thermal transfer and direct thermal printing

 - Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

 - Side-loading supplies path for simplified media and ribbon loading

 - Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

 - Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

 - Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance

 - Simplified icon menu navigation system categorizes settings into logical groups of functions



Printer Specifications

Operating System Link-OS®
Resolution

203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT610 only)

Memory

1 GB RAM memory
2 GB  on-board linear Flash memory

Maximum Print  Width

ZT610: 4.09"/104 mm
ZT620: 6.6"/168 mm

Maximum Print Speed

ZT610:  14 ips/356 mm per second
ZT620:  12 ips/305 mm per second

Media Sensors Dual media sensors: transmissive and reflective
Maximum Continuous Print Length

ZT610
203 dpi: 150"/3810 mm
300 dpi: 100"/2540 mm
600 dpi: 30"/762 mm

ZT620
203 dpi: 80"/2032 mm
300 dpi: 80"/2032 mm



Media Characteristics

Media Width

ZT610: 0.79"/20 mm to 4.5"/114 mm
ZT620: 2.0"/51 mm to 7.1"/180 mm

Maximum Media
Roll Size
8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Thickness 0.0023"/0.058 mm to 0.010"/0.25 mm
Media Types Continuous, die-cut, notch, black-mark



Ribbon Characteristics

Standard Length  1476'/450 m
Width

ZT610: 0.79"/20 mm to 4.33"/110 mm
ZT620: 2.0"/51 mm to 6.7"/170 mm

Core 1.0"/25.4 mm I.D.



Physical Characteristics

  ZT610 closed
Length 19.88"/505 mm
Width 10.56"/268.2 mm
Height 15.58"/395.68 mm
Weight 50 lbs/22.7 kg
  ZT620 closed
Length 19.88"/505 mm
Width 13.44"/341.45 mm
Height 15.58"/395.68 mm
Weight 57.4 lbs/26 kg
