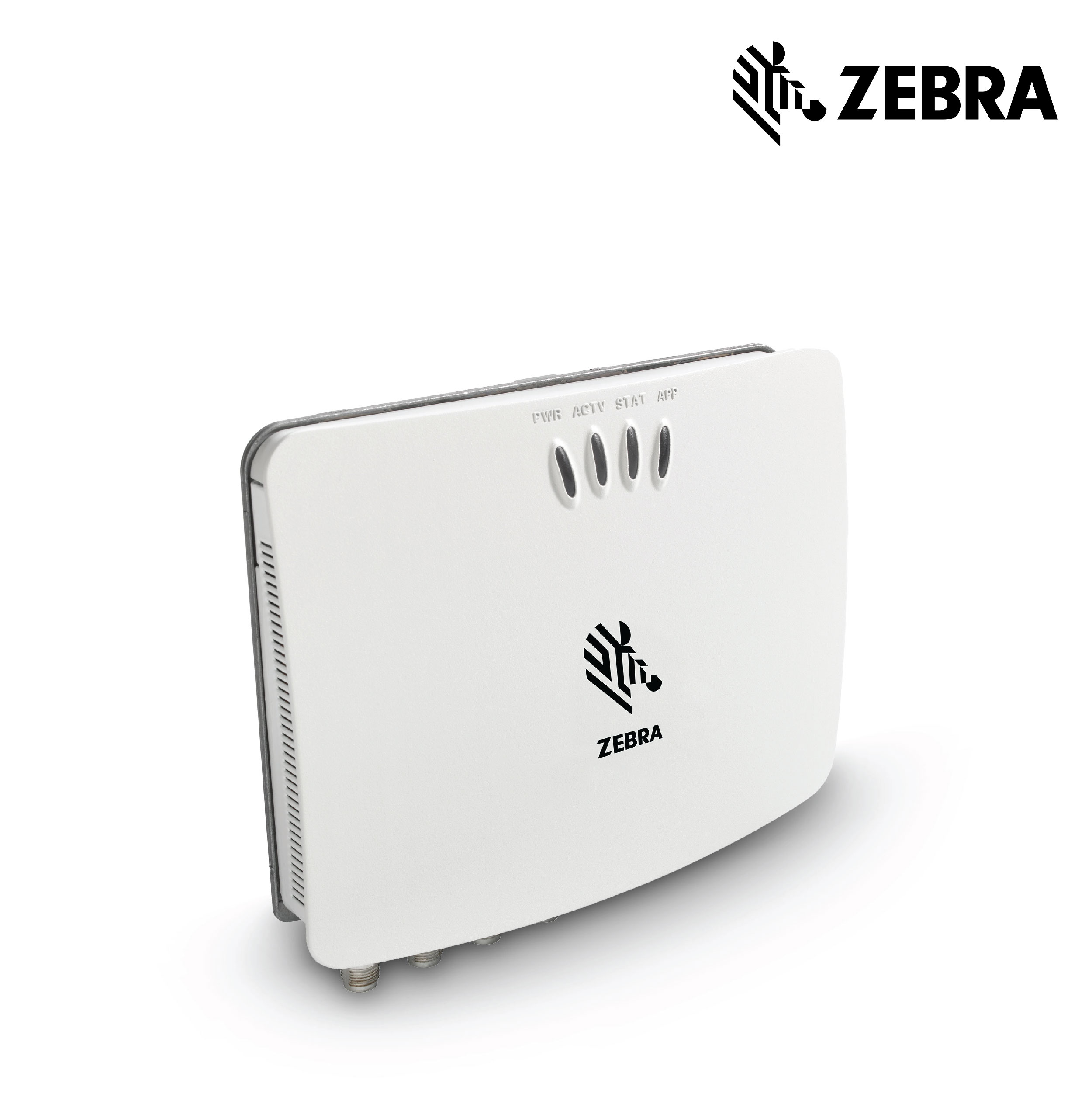

Zebra FX7500 Fixed RFID Reader

(General Purpose) The new FX7500 fixed RFID reader features advanced RFID radio technology, delivering faster read speeds and greater accuracy. It also provides stable performance, even in challenging environments. Its new Linux-based network architecture enhances flexibility, integrating tools and open-standard interfaces that facilitate quick and easy deployment with RFID applications and backend systems. This reader delivers peak performance at all times, with excellent read sensitivity and strong interference rejection capabilities.

interested in the product

online channel

FEATURES

  • Higher, faster RF performance
  • Light weight – smallest in its class
  • 4-port and 2-port antenna options
  • Power over Ethernet (PoE)
  • Plenum rated – install behind walls ceiling spaces
  • 2/3 General Purpose Input/Output (GPIO) ports
  • New Linux® digital architecture
  • Additional USB host port
  • FIPS 140 (level 1) compliance
  • Supports embedded applications



BENEFITS

  • Increased read/tracking rates and sensitivity
  • Enhanced noise rejection
  • Increased connectivity/functionality
  • Higher security
  • Easy to use, deploy



TARGET MARKETS

  • Retail – storefront/offices
  • Healthcare
  • Commercial services/government
  • IT asset management

Specifications

Physical Characteristics
Dimensions 7.7 in. L x 5.9 in. W x 1.7 in. D
(19.56 cm L x 14.99 cm W x 4.32 cm D)
Weight 1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
Housing Material Die-cast aluminum, sheet metal and plastic
Visual Status Indicators Multicolor LEDs: Power, Activity, Statusand Applications
Mounting Keyhole and standard VESA (75mm x 75mm)
Environmental
Operating Temp. -4° to +131° F/-20° to +55° C
Storage Temp. -40° to +158° F/-40° to +70° C
Humidity 5-95% non-condensing
Shock/Vibration MIL- STD-810G
Regulatory Compliance
Safety UL 60950-01, UL 2043, IEC 60950-1, EN 60950-1
RF/EMI/EMC

FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B,

EN 301 489-1/3

SAR/MPE FCC 47CFR2:OET Bulletin 65; EN 50364
Other ROHS, WEEE
Recommended Services
Support Services Service from the Start Advance Exchange On-Site System Support
Advanced Services RFID Design and Deployment Services
Connectivity
Communications

10/100 BaseT Ethernet (RJ45) w/ POE support;

USB Client (USB Type B)*, USB Host Port (Type A)*

General Purpose I/O
2 inputs, 3 outputs, optically isolated
(Terminal Block)
Power Supply
POE, POE+ or +24V DC (UL Approved)
12V-48VDC operation can be supported
Antenna Ports

FX 7500-2: 2 mono-static ports (Reverse Polarity TNC)

FX 7500-4: 4 mono-static ports
(Reverse Polarity TNC)

Hardware, OS and Firmware Management

Processor Texas Instruments AM3505 (600 Mhz)
Memory Flash 512 MB; DRAM 256 MB
Operating System
Linux
Firmware Upgrade
Web-based and remote firmware upgrade capabilities
Management Protocols
RM 1.0.1 (with XML over HTTP/HTTPS and
SNMP binding); RDMP
Network Services
DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP,
SNMP and NTP
Network Stack IPv4 and IPv6
Security
Transport Layer Security Ver 1.2, FIPS-140
Air Protocols
EPCglobal UHF Class 1 Gen2, ISO 18000-6C
Frequency (UHF Band)

Global Reader: 902 MHz–928 MHz (Maximum, supports countries that use a part of this band),

865 MHz–868 MHz US (only) Reader: 902 MHz–928 MHz

Transmit Power Output
10 dBm to +31.5 dBm (POE+, 12V ~48V External DC, Universal 24V DC Power Supply);
+10 dBm to +30.0 dBm (POE)
Max. Receive Sensitivity
-82 dBm
IP addressing
Static and Dynamic
Host Interface Protocol
LLRP
API Support
Host Applications–.NET, C and Java EMDK;
Embedded Applications–C and Java SDK
Warranty

The FX7500-2 and FX7500-4 are warrantied against

defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.

Footnotes

*Configurations without a USB hub require an external

USB hub for full USB functionality
