Corning Gorilla Glass touch panel with air gap;

supports dual input mode with finger, gloved

finger and stylus (conductive stylus sold separately)

PTT Express and Workforce Connect PTT Pro

(Internal speaker, microphone and Bluetooth

wireless headset support)

All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five

(5) hours; hot swap support with temporary

WLAN/Bluetooth session persistence
Backwards compatibility with 5200mAh (2X) batteries

Multiple 5 ft./1.5 m drops to concrete over

the entire operating temperature range

865-928MHz
*Specific regional and country settings supported

upon country selection

Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,

10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,

136,140,144,
149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths
depend on regulatory rules and certification agency.

WEP (40 or 104 bit); WPA/WPA2 Personal

(TKIP, and AES);
WPA3 Personal (SAE); WPA/WPA2 Enterprise

(TKIP and AES); WPA3 Enterprise (AES)

— EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS,

PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC,

LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode

(GCMP-256) — EAP-TLS; Enhanced Open (OWE)

WFA (802.11n, WMM-PS, 801.11ac, PMF);

WiFi Direct WMM-AC, Voice Enterprise

Class 2, Bluetooth v5.0 with BR/EDR and

Bluetooth Low Energy (BLE) Support

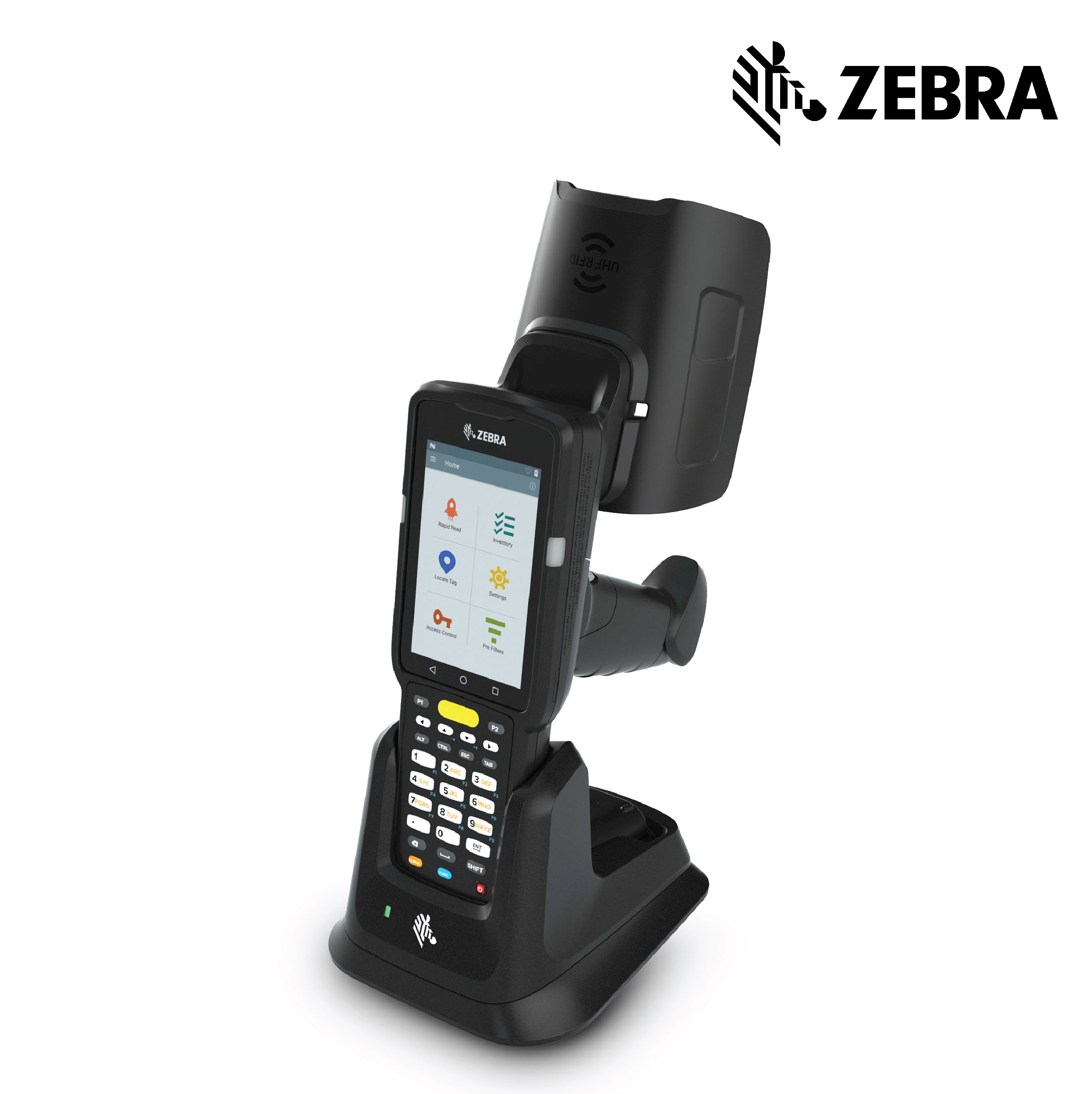

Single slot cradle with spare battery charger;

4-slot charge only cradle with 4-slot battery charger;

4-slot Ethernet cradle with 4-slot battery charger;

5-slot charge only cradle; 5-slot Ethernet cradle

FCC Part 15 Subpart B Class B; ICES 003 Class B;

EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B

UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1,

EN 60950-1

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
A complete list of product and materials compliance,

please visit:
www.zebra.com/environment

Subject to the terms of Zebra’s hardware warranty

statement, the MC3390xR is warranted against defects in workmanship and materials for a period of 1 (one) year

from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty

Zebra OneCare Essential and Select: Maximize

Zebra device availability, device value and operational

efficiency with these fully-featured support services

that set the industry bar for support.

Zebra VisibilityIQ^TM Services: Improve device value

with Zebra’s optional VisibilityIQ™ Services. Visibility

IQ gives the data-driven, actionable insight to get the

most from your devices, workers and daily tasks.

VisibilityIQ™ Foresight aggregates big data onto a single,

color-coded, cloud-based pane of glass, translating it into

actionable insight to streamline workflow. VisibilityIQ™

DNA provides a view into key DNA tools, and VisibilityIQ™

OneCare® cloud-based dashboard offers visibility into

repairs, tech support, software security status and more.

Mobility DNA solutions help you get more value out

of our mobile computers by adding functionality

as well as simplifying deployment and management

of our mobile devices. For more information on

these Zebra-only features, please visit
www.zebra.com/mobilitydna

Mobility DNA is available on Android only. Features may

vary by model and a Support Contract may be required.

To learn what solutions are supported, please visit:
https://developer.zebra.com/mobilitydna
