Physical        Characteristics

Corning Gorilla Glass touch panel with air gap;

supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately)

PTT Express and Workforce Connect PTT Pro

(Internal speaker, microphone and Bluetooth wireless

headset support)

All models ship with rechargeable Li-Ion, 3.6V,

7000mAh PowerPrecision+ battery; full charge under

five (5) hours;

hot swap support with temporary WLAN/Bluetooth

session persistence
Backwards compatibility with 5200mAh (2X) batteries

865-928MHz
*Specific regional and country settings supported

upon country selection

Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,

11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,

136,140,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and

bandwidths depend on regulatory rules and

certification agency.

WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES);
WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES);

WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE)

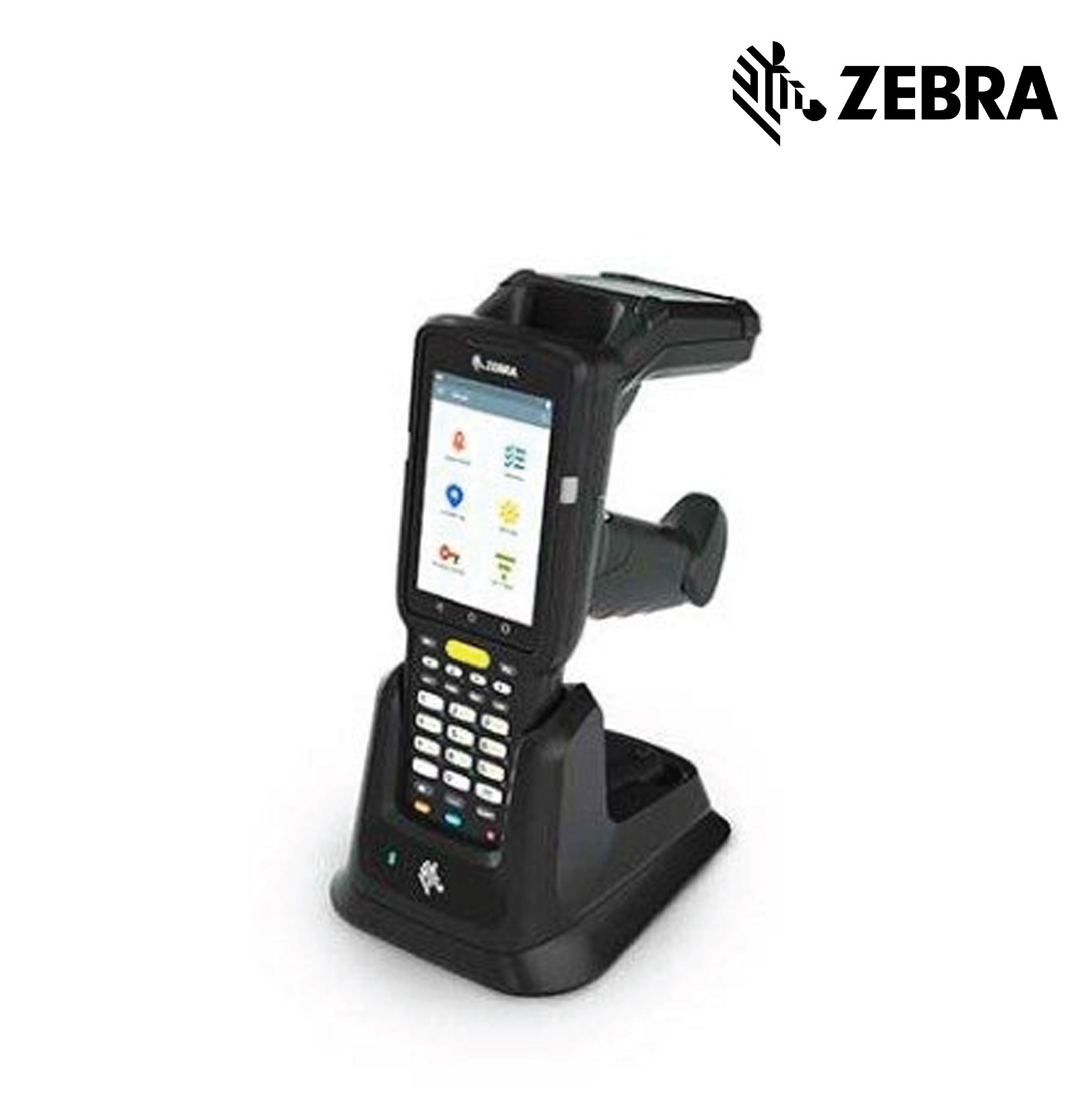

Single slot cradle with spare battery charger; 4-slot charge

only cradle with 4-slot battery charger; 4-slot Ethernet cradle

with 4-slot battery charger; 5-slot charge only cradle; 5-slot

Ethernet cradle

FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301

489-1; EN 301 489-3; EN 55024; EN 55032 Class B

UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1,

EN 60950-1

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
A complete list of product and materials compliance,

please visit:
www.zebra.com/environment

Subject to the terms of Zebra’s hardware warranty statement,

the MC3390xR is warranted against defects in workmanship

and materials for a period of 1 (one) year from the date

of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty

Zebra OneCare Essential and Select: Maximize Zebra

device availability, device value and operational efficiency

with these fully-featured support services that set the

industry bar for support.

Zebra VisibilityIQ^TM Services: Improve device value

with Zebra’s optional VisibilityIQ™ Services. VisibilityIQ

gives the data-driven, actionable insight to get the

most from your devices, workers and daily tasks.

VisibilityIQ™ Foresight aggregates big data onto a single,

color-coded, cloud-based pane of glass, translating it into actionable insight to

streamline workflow. VisibilityIQ™ DNA provides a view

into key DNA tools, and VisibilityIQ™ OneCare®

cloud-based dashboard offers visibility into repairs,

tech support, software security status and more.

1. Based on Zebra test results from specific use cases

Specifications subject to change without notice.

Mobility DNA solutions help you get more value out of

our mobile computers by adding functionality as well as

simplifying deployment and management of our mobile

devices. For more information on these Zebra-only features, please visit
www.zebra.com/mobilitydna

Mobility DNA is available on Android only. Features may vary

by model and a Support Contract may be required. To learn

what solutions are supported, please visit:
https://developer.zebra.com/mobilitydna
